Description
Model No.: BNC-44

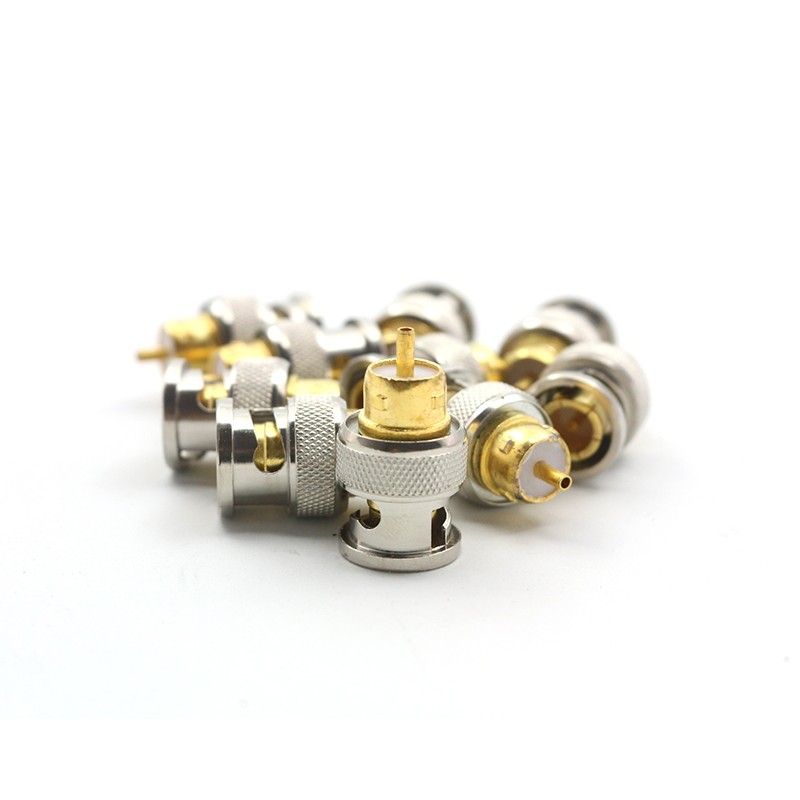

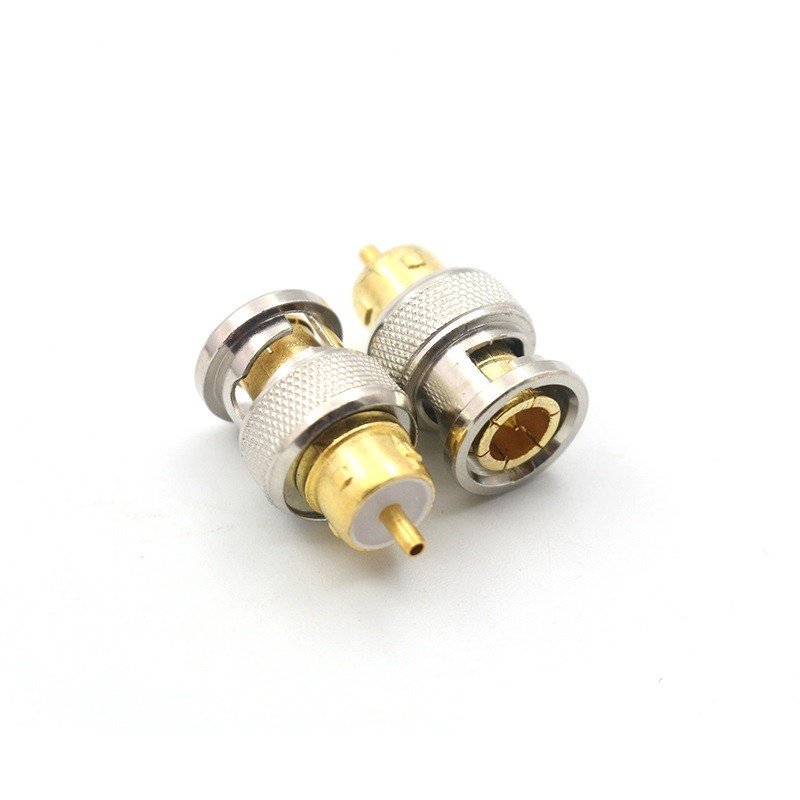

BNC male connector gold plated injection molding waterproof connectors
Color: silver
Insulation Resistance:≥5000Mohm
Center Contact Resistance: ≤1.5Mohm
Outer Contact Resistance: ≤1Mohm
Working Voltage: 500V r.m.s at sea level
Workstandinging Voltage: 1500V r.m.s at sea level
Attenuation: 0.5dB typ
Frenquency Range: DC-4GHZ
Temperature Range: -5 degree to +155 degree
Humidity: 0 to 95%
