Description

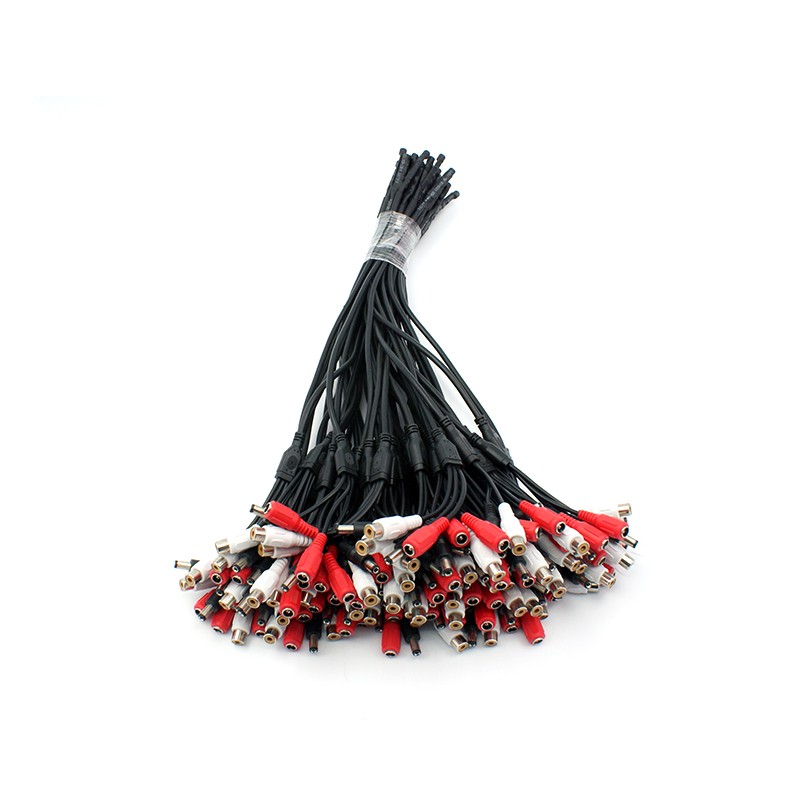

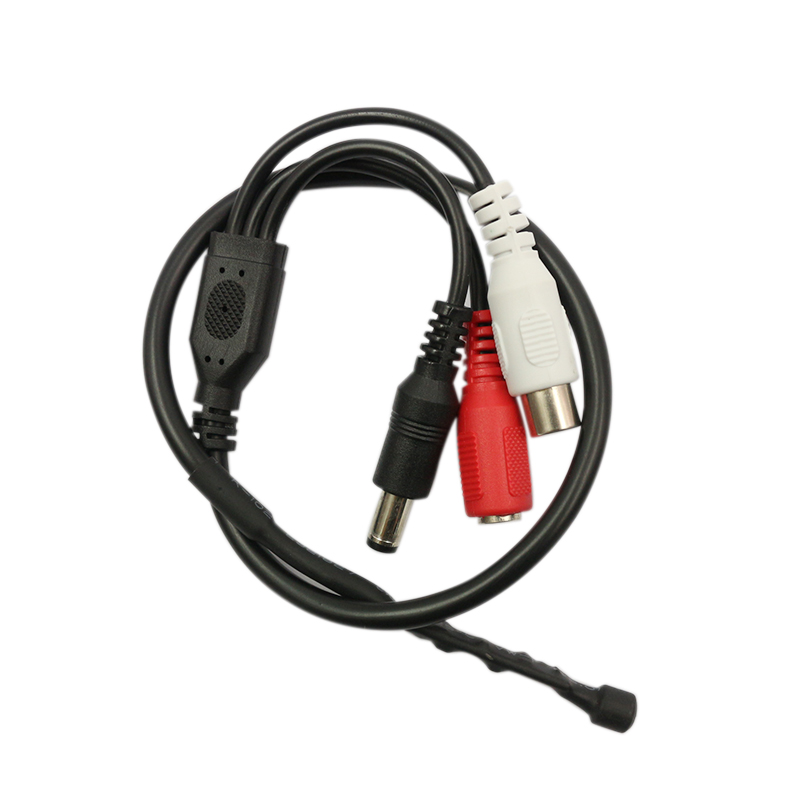

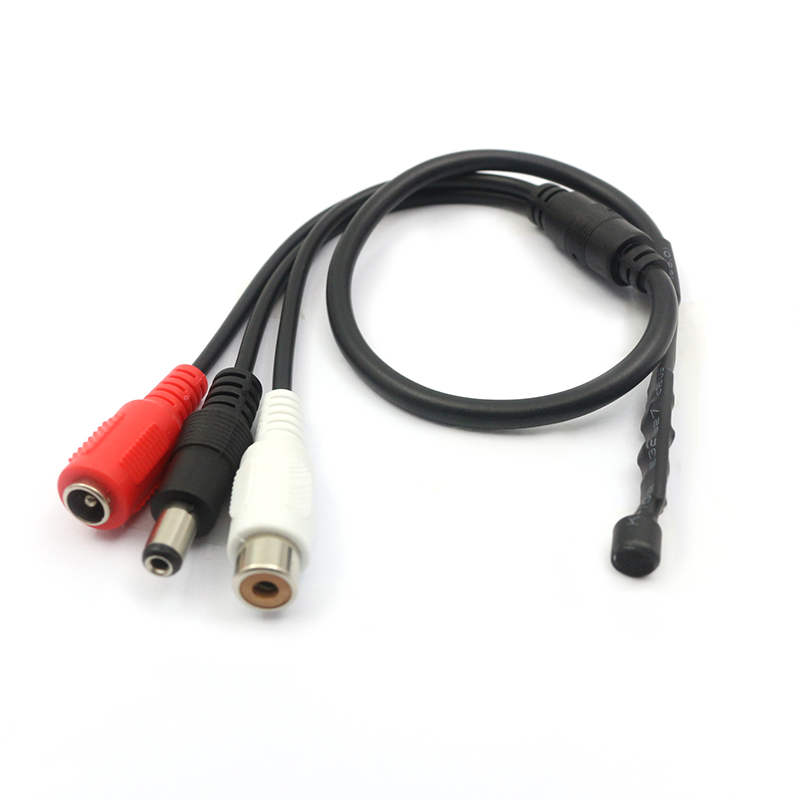

5-80 Square metres CCTV Microphone with Three connectors
Model No.: HM-M403A
Brilliant and fashionable design
Monitoring Scope: 5～80㎡
Connection:
Audio female RCA jack
Female DC power plug
Application: CCTV System
Type of Microphone：Electret
Working Voltage:DC 9V-12V
Operating Current：25mA
Output Signal：2.5Vpp / -25db
Frequency Rang：200～ 10kHz
Output Impedance： 600Ω
Sensitivity：-60dB
Signal to noise ration (SNR)：60dB (1m 40dB sound source)
50dB (10m 40dB sound source)
Direction：Omnidirectional
Max SPL (sound pressure level)：80dB SPL (1KHz, THD 1%)
Dynamic Range：35dB (1KHz at max dB SPL)
Frequency Rang：200～ 10kHz
Output Impedance： 600Ω
Sensitivity：-60dB
Signal to noise ration (SNR)：60dB (1m 40dB sound source)
50dB (10m 40dB sound source)
Direction：Omnidirectional
Max SPL (sound pressure level)：80dB SPL (1KHz, THD 1%)
Dynamic Range：35dB (1KHz at max dB SPL)
Material：Plastic + PVC
Color：Black
Color：Black
