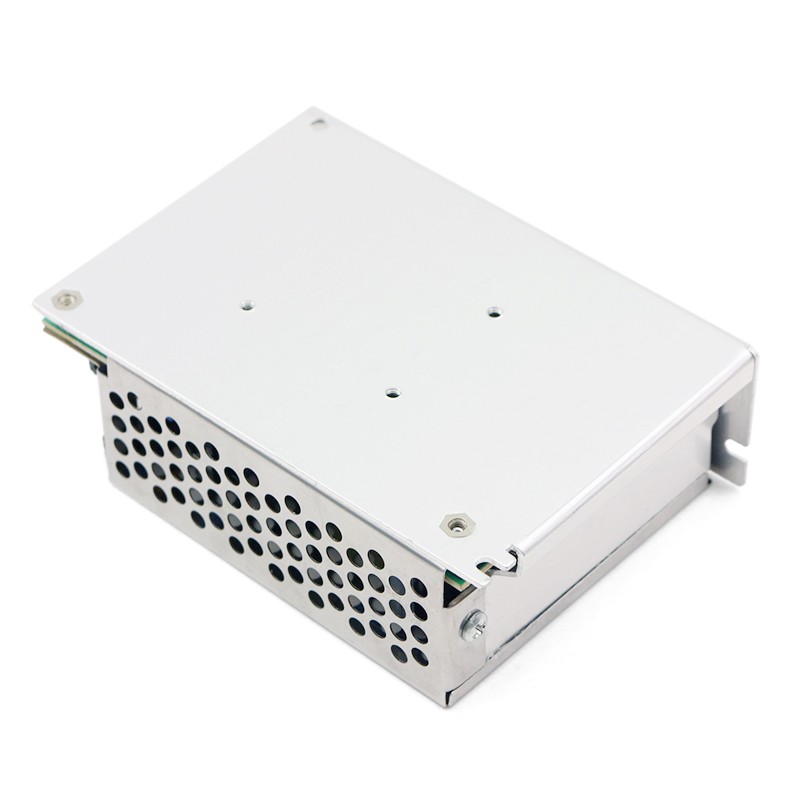

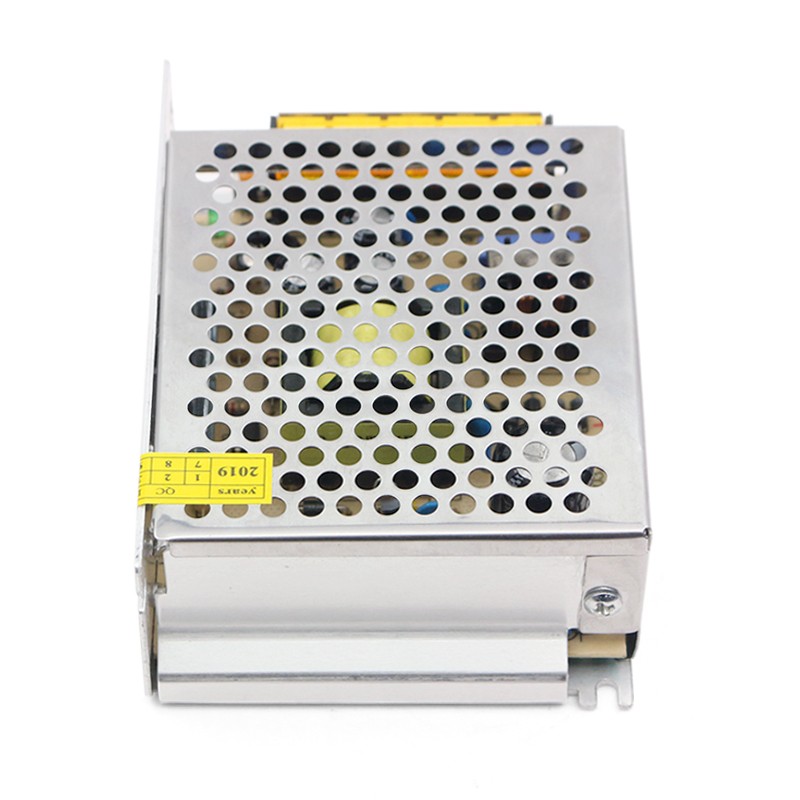

12V5A Switching Power Supply
Model No.: HM-U1205
Model No.: HM-U1205
12V2A/3A optional
HM-U1202/HM-U1203
AC input Voltage Range：85-264VAC 47-63Hz
Input current: 0.5A/115V 0.25A/230V
Leakage current:<1mA/240VAC
DC adjustable range:±10% rated output voltage
Over load protection:115%-135% cut off the output,auto-recovery
Setup rise hold up time:200ms,50ms,20ms
Withstand voltage:
I/P-O/P:1.5KvAc 1 mintute
I/P-FG:1.5KvAc 1 mintute
I/P-O/P:0.5KvAC 1 mintute
Input current: 0.5A/115V 0.25A/230V
Leakage current:<1mA/240VAC
DC adjustable range:±10% rated output voltage
Over load protection:115%-135% cut off the output,auto-recovery
Setup rise hold up time:200ms,50ms,20ms
Withstand voltage:
I/P-O/P:1.5KvAc 1 mintute
I/P-FG:1.5KvAc 1 mintute
I/P-O/P:0.5KvAC 1 mintute
Working temperature:-10℃~+60℃,20%~90RH
Weight/Packing/size:330g,65pcs/box,158*97*42mm
Load stability:±1%
Ripple And Noise:50mV
Weight/Packing/size:330g,65pcs/box,158*97*42mm
Load stability:±1%
Ripple And Noise:50mV
Warranty: 2 years
