HM-920

Description

Model : HM-920

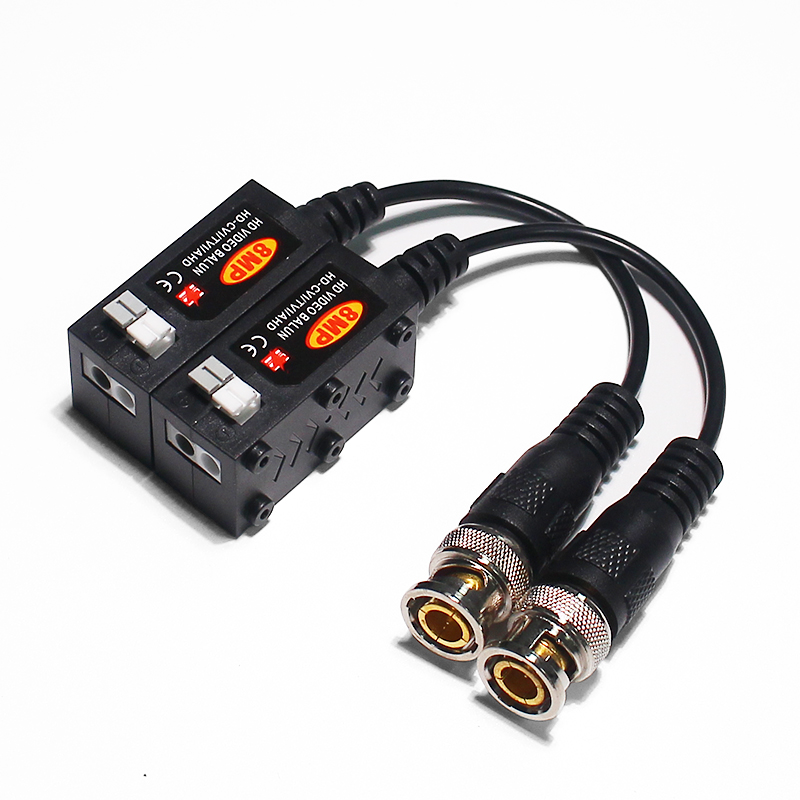

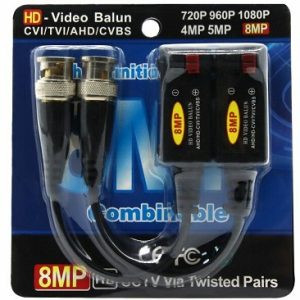

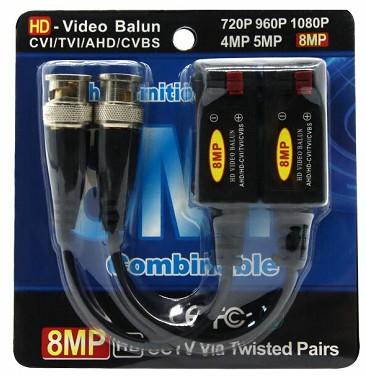

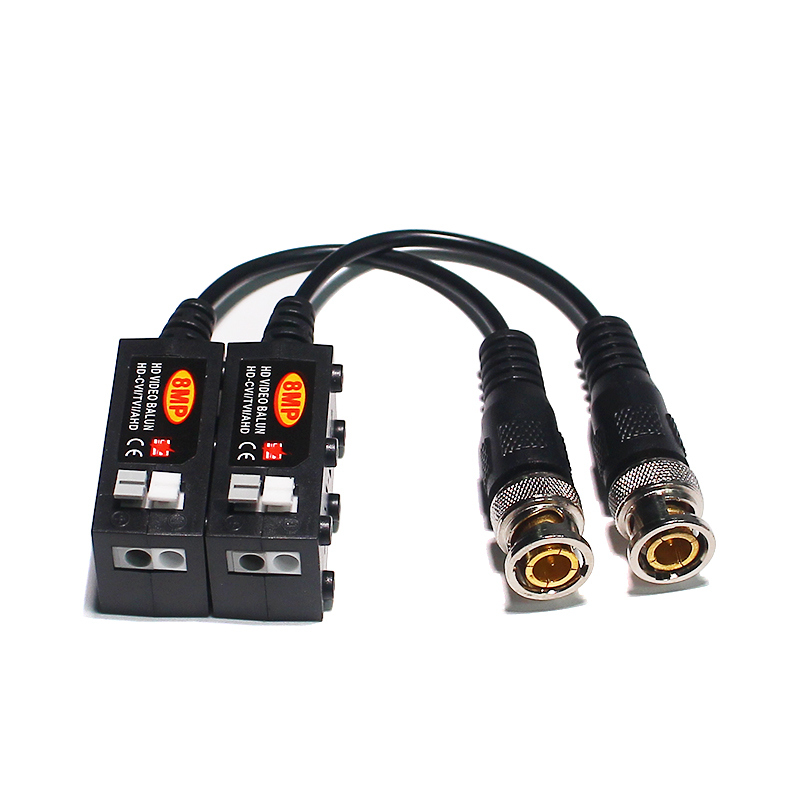

Coaxial UTP HD CCTV Passive Video Balun,Press-Fit Terminal

HD-AHD/CVI/TVI/CVBS

720P/960P/1080P (3MP/4MP/5MP/8MP)

Compatible Format:HDTVI / CVI / AHD / CVBS  (NTSC/PAL/SECAM)

Resolution:720P/960P/1080P (3MP/4MP/5MP/8MP)

Transmission Disstance :

AHD/CVI: 450m(max) /TVI: 300m(max)/CVBS: 600m(max)

Category Type: UTP Cat5e/6

Connection Mode: Press-Fit Terminal

Coaxial Video Connector: BNC-Male

Anti-interference:＞60dB

Frequency Response: DC to 9MHz

Impedance: BNC Male:75Ω  /  UTP Cable:100Ω

Application: CCTV  system
