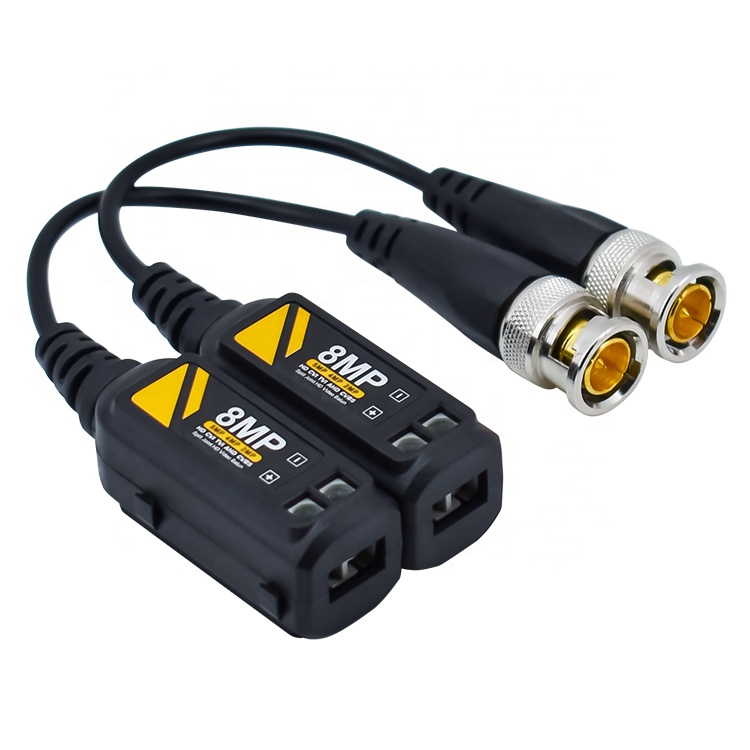

HM-951

Model No.: HM-951, Screw terminal

4K/8MP/5MP/3MP/2MP/1080P

Passive UTP Video Balun for HD-AHD,TVI,CVI Cameras

It is compatible with all HD-TVI, HD-CVI, AHD and CVBS analog cameras.

It is a passive UTP balun that allows the transmission of real-time CCTV HD video signal via cost-effective Unshielded Twisted Paired (UTP) cable.

No external power required

Compact size and easy installation

Surge Protection：Renewable solid state surge protection
Long-distance transmission and high-quality image
Category Type: Cat5e/6

Wave Filtering Design,Anti-Static Design

Real time transmission

Operating Frequency:DC to 8MHz

Exceptional interference rejection

Common-mode/Different-mode rejection :15KHz to 5MHz   60 dB typ

Impedance: Male BNC:75Ω

                   Terminal:100Ω

Network Wiring：One Unshield Twisted Pair(for each video signal)24-16AWG(0.5-1.31mm)

DC Loop Resistance：52 ohms per 1000ft(18 ohms per 100m)

DC Loop Resistance：Different Capacitance

Video Input：2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999)

Video Output： 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999)

Video input/output：

Male BNC Connector

Screw terminal

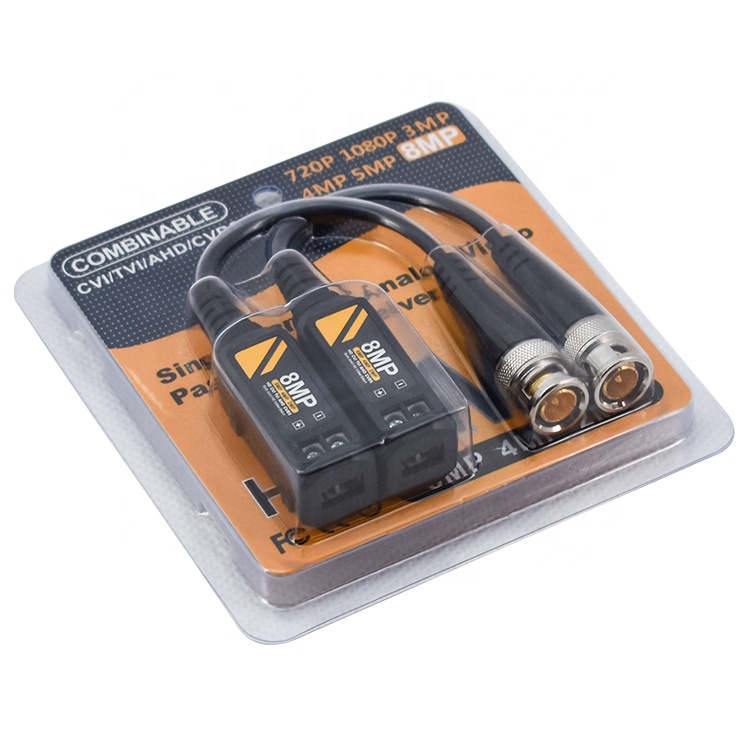

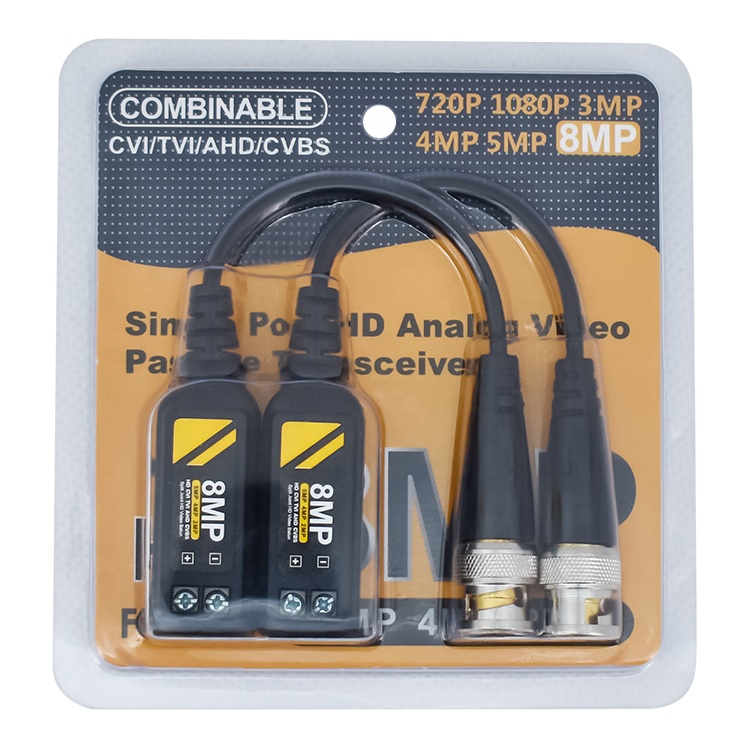

Blister card packing

Black body color

Housing : ABS engineering plastic

2 years warranty period

Welcome oem package / logo
