Description

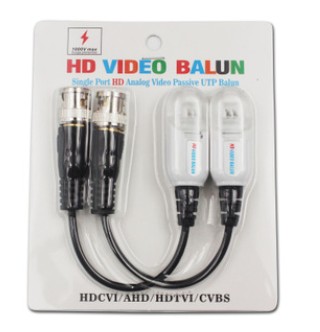

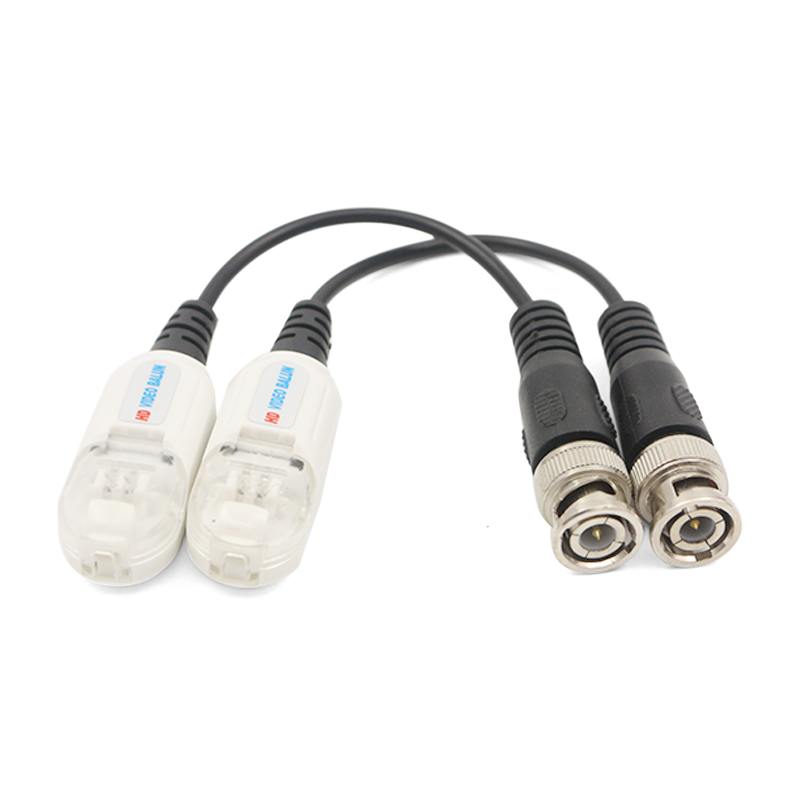

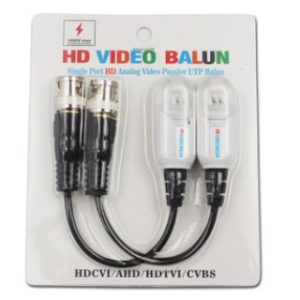

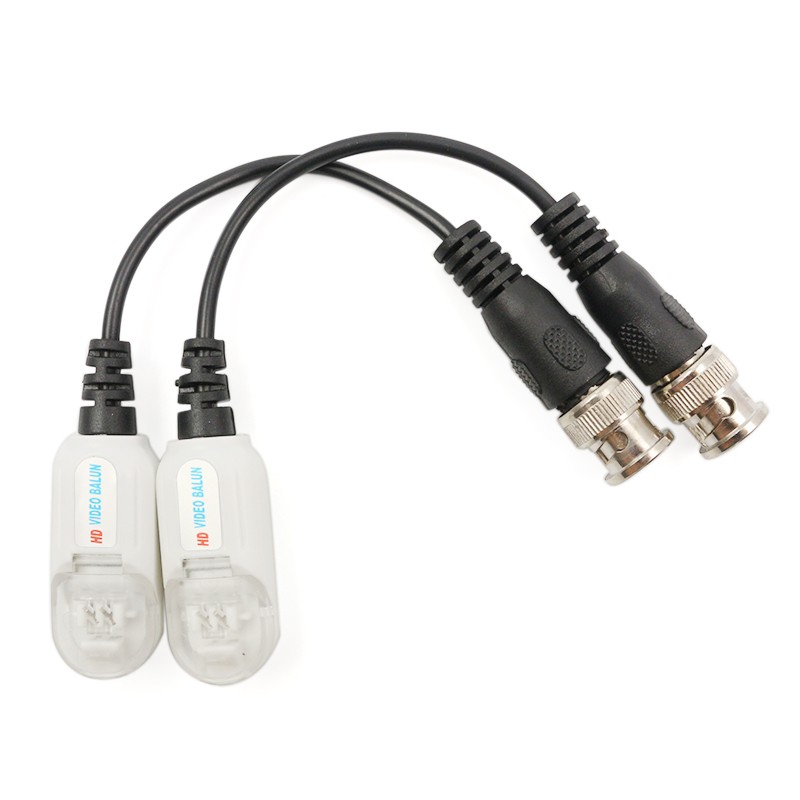

Passive Video Balun for HD-AHD,TVI,CVI ,CVBS, with cables
* Compatible with all digital HD-TVI, CVI, and AHD analog cameras
* No power required，plug&play
* HD TVI: 720P 600m / 960P 450m / 1080p 350m
* HD CVI: 720P 650m / 960P 500m / 1080p 380m
* HD AHD: 720P 650m / 960P 500m / 1080p 380m
* Real Time Transmission
* Push pin terminal connection for UTP cable
* Builtin TVS (transient voltage suppressor) for surge protection
* Anti-static wave filter design
* Lightning protection design (GRADE III)
* 60dB crosstalk and noise immunity; exceptional interference rejection
