Description

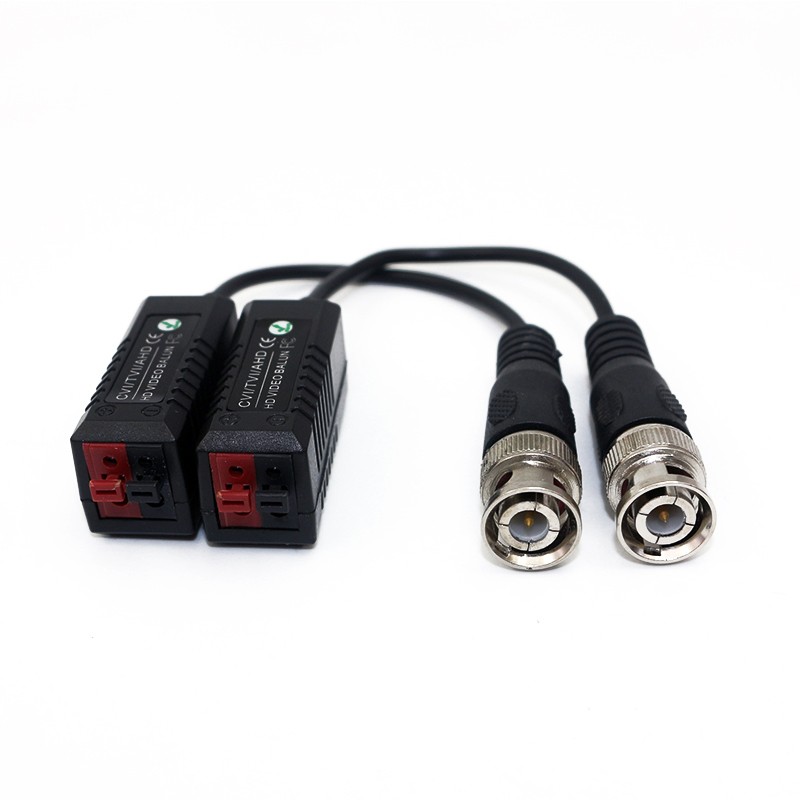

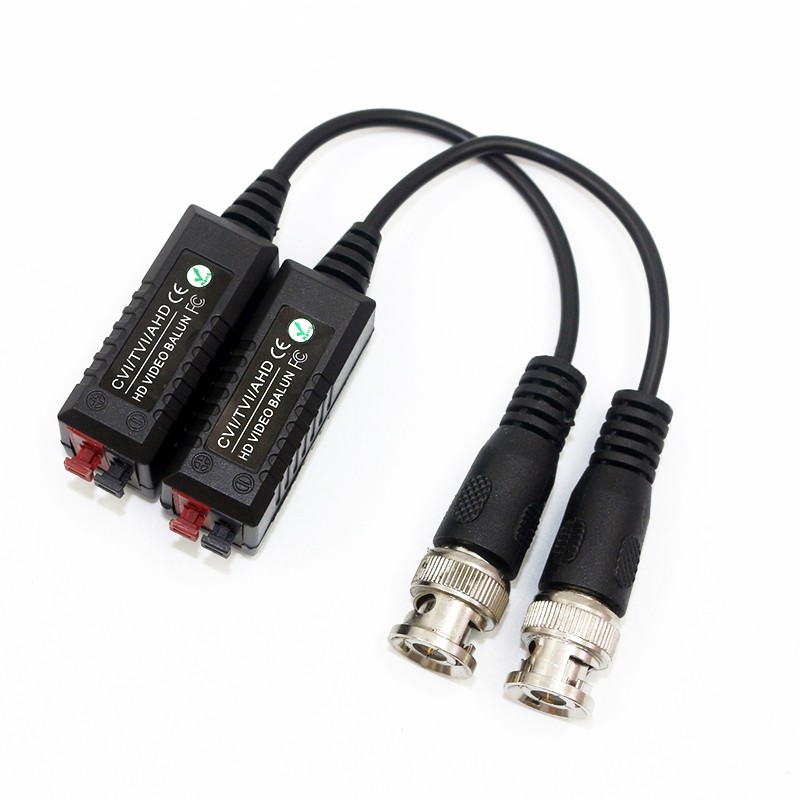

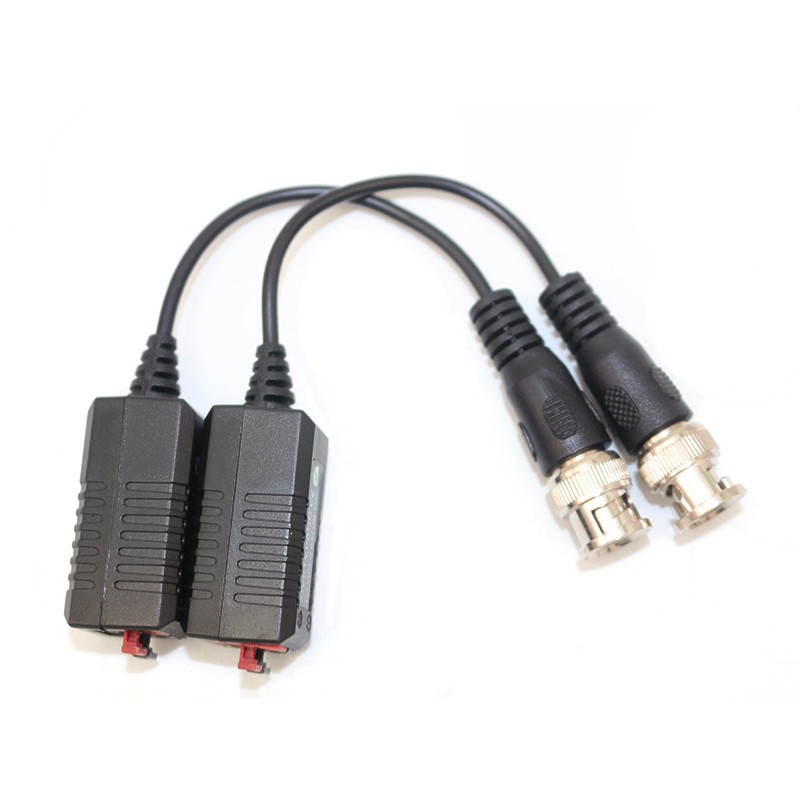

Model No.: HM-911
Passive Video Balun for HD-AHD,TVI,CVI Cameras
No power required,plug&play
Real time transmission
Exceptional interference rejection
Wave Filtering Design,Anti-Static Design,
Long-distance transmission and high-quality image
Compact size and easy installation
Cost-effective
Resolution:720P /960H / 1080P
Operating Frequency:DC to 8MHz
Common-mode/Different-mode rejection :15KHz to 5MHz 60 dB typ
Impedance: Male BNC:75Ω
Terminal:100Ω
Network Wiring：One Unshield Twisted Pair(for each video signal)24-16AWG(0.5-1.31mm)
DC Loop Resistance：52 ohms per 1000ft(18 ohms per 100m)
DC Loop Resistance：Different Capacitance
Surge Protection：Renewable solid state surge protection
Video Input：2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999)
Video Output： 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999)
Video input/output：Male BNC / Push terminal
Blister card packing
