HM-933PV

Model No.: HM-933PV

2 in1 HD Video Balun for  CVI AHD TVI HD cameras

(Power+Video)

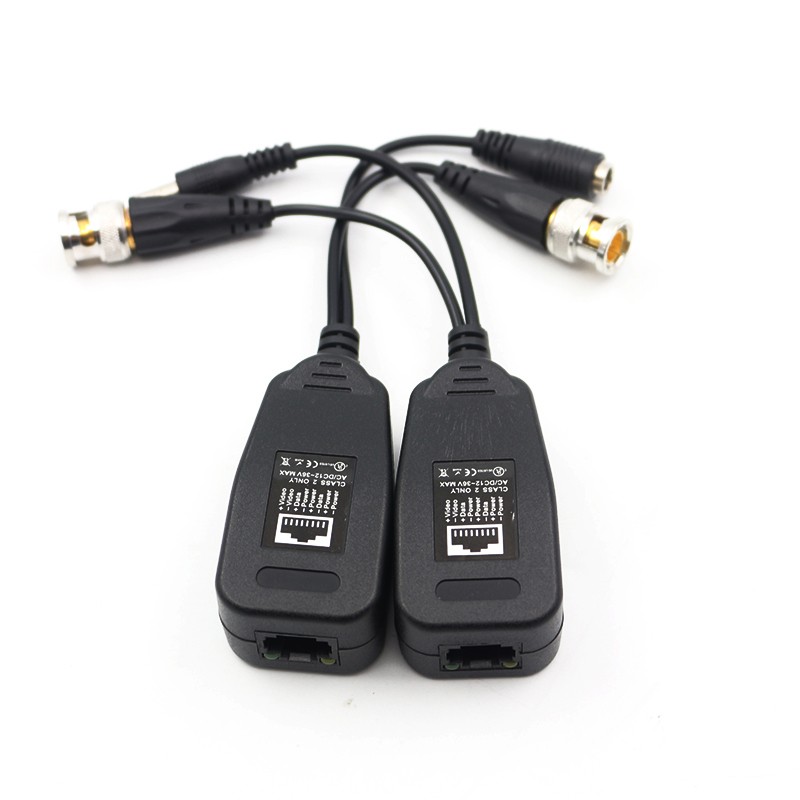

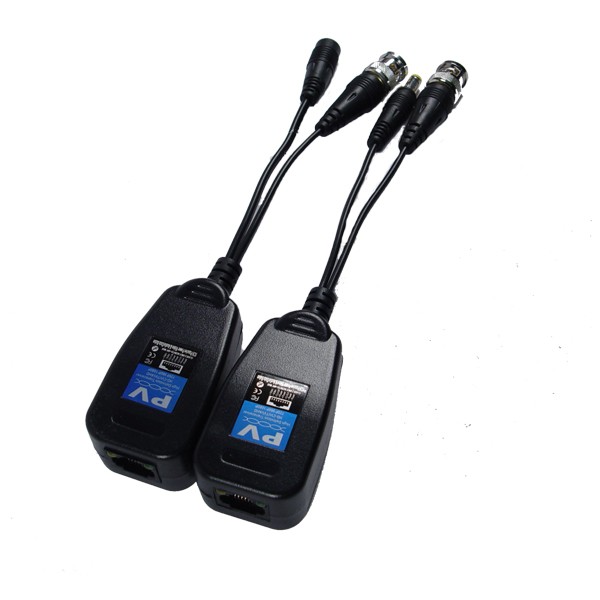

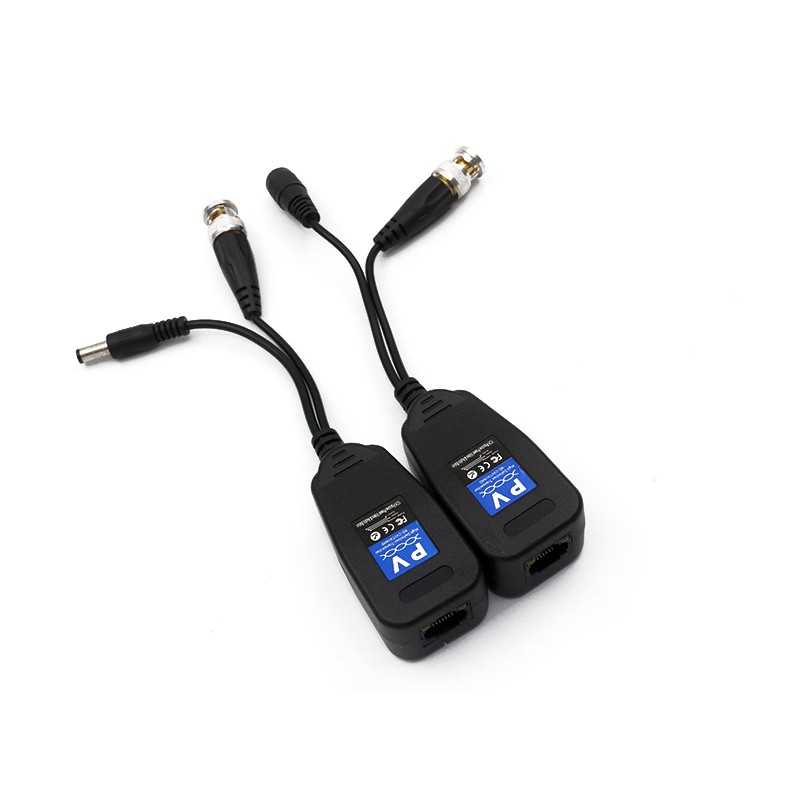

Package contains: 1 pair video balun RJ45 to BNC transceiver with connectors.
Connectors 1: RJ45 to BNC male and DC male jack. Connector 2: RJ45 to BNC male and DC female jack.

Passive Video/Audio Power Balun RJ45 to BNC Network Transceiver, Compatible with CVI, TVI, CVBS and AHD Passive (Video) & (Audio ) & (DC Power) Connector Balun devices,
fit for 720P 960P 1080P CCTV Cameras, monitor, DVR card and recorder etc.
Easy installation, using the standard UTP CAT5/CAT5E/CAT6 cable system and low voltage power supply.
Real-time transmission of AHD, CVI, TVI, CVBS and other high-definition signals, the use of SMD technology, CVI signal transmission distance of up to 450 meters;
TVI / CVBS signal transmission distance of up to 250 meters, AHD signal transmission distance of up to 320 meters.
2Pairs Passive Video Baluns can realize the use of super Category 5 twisted pair cable instead of 75 ohm coaxial cable, as CVI/AHD/TVI/CVBS video signal transmission.
Ensure the image quality, filter most of the interfering signals, and improve the clarity of the image. Suitable for a variety of signal sources.
LED indicate green light is working model , yellow light does not working.

Input and Output Voltage: 12-36V
Total length: 16cm
Colour: (black), Material: ABS+metal.
