HM-944

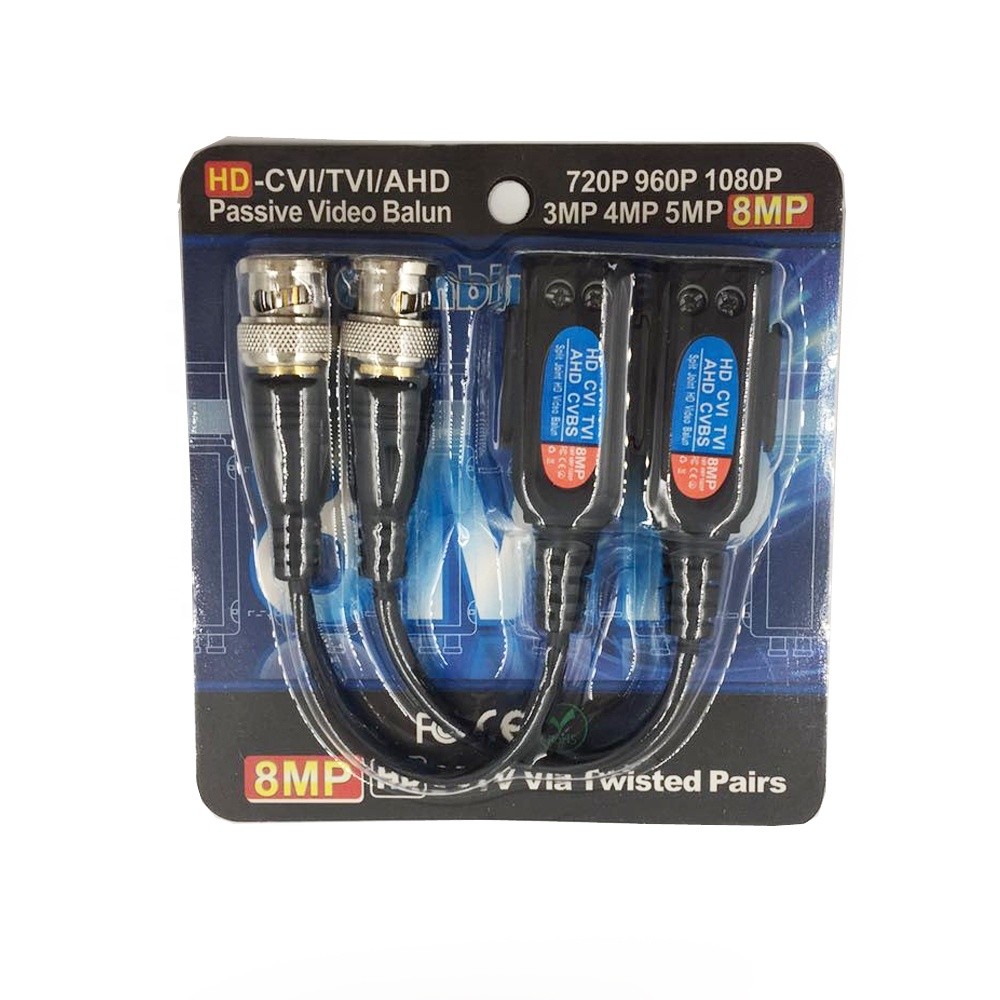

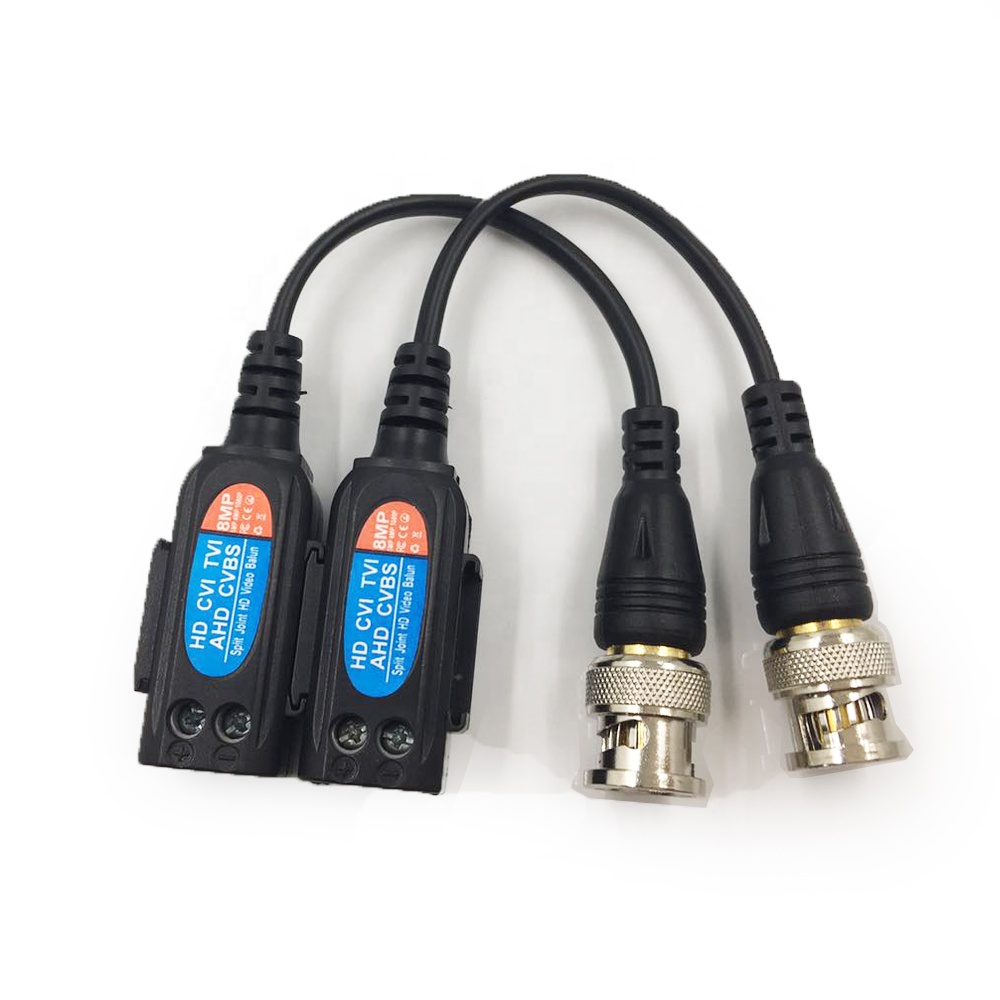

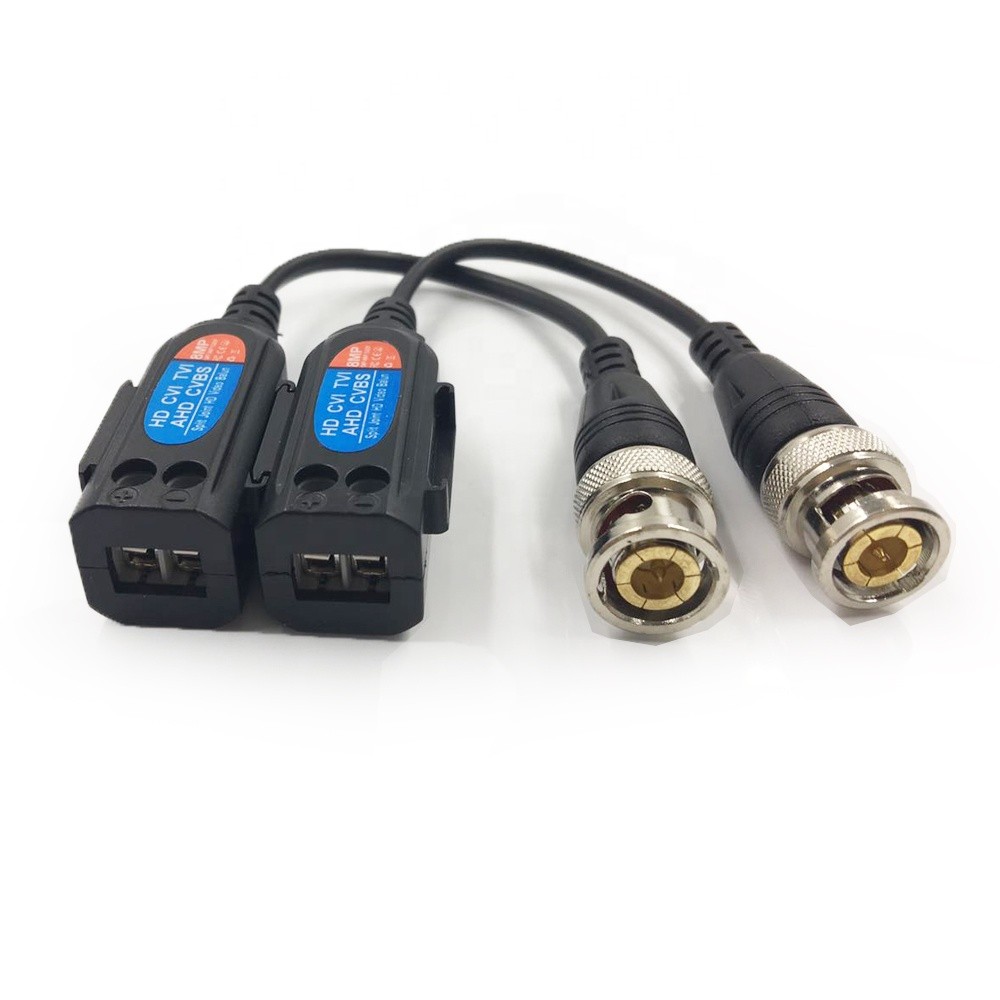

Model No.: HM-944, High quality 8mp /4k video balun

Coaxial UTP HD CCTV Passive Video Balun, pigtail

 HD-AHD/CVI/TVI/CVBS

Transmission Distance:

HD TVI: 720P 600m  /  960P 450m  / 1080p 350m
HD CVI: 720P 650m  /  960P 500m  / 1080p 380m
HD AHD: 720P 650m  /  960P 500m  / 1080p 380m

Freely combine design
No power required,plug&play

Real time transmission
Exceptional interference rejection
Wave Filtering Design,Anti-Static Design,
Long-distance transmission and high-quality image
Compact size and easy installation
Cost-effective

Resolution:720P /960P / 1080P

Operating Frequency:DC to 8MHz

Common-mode/Different-mode rejection :15KHz to 5MHz   60 dB typ

Impedance:

Male BNC:75Ω

Terminal:100Ω

Network Wiring：One Unshield Twisted Pair(for each video signal)24-16AWG(0.5-1.31mm)

DC Loop Resistance：52 ohms per 1000ft(18 ohms per 100m)

DC Loop Resistance：Different Capacitance

Surge Protection：Renewable solid state surge protection

Video Input：2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999)

Video Output： 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999)

Video input/output：Male BNC / Screw terminal
