HM-E60IR

Description

Model No.: HM-E60IR

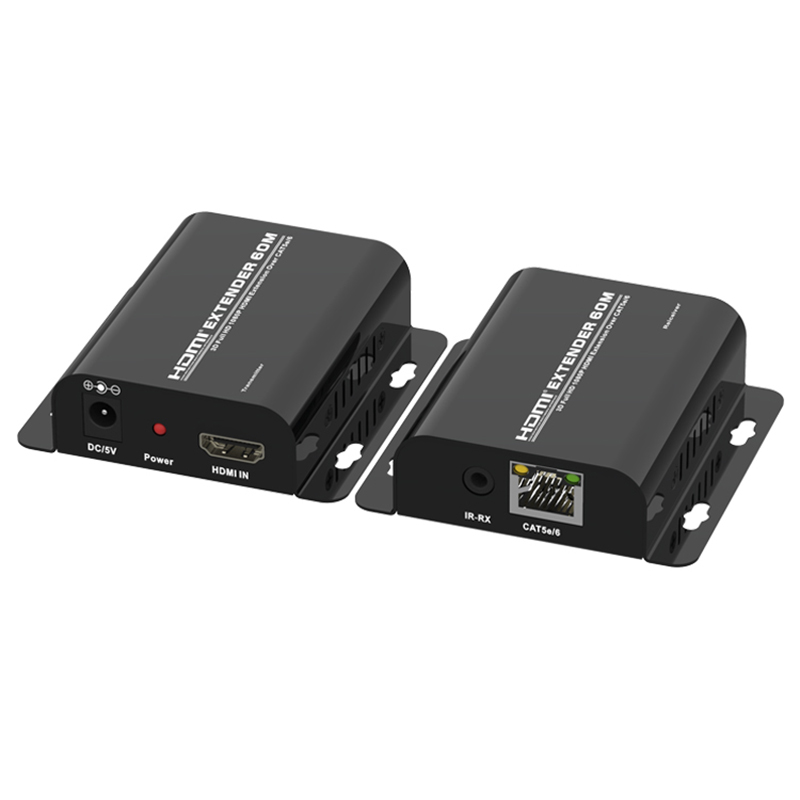

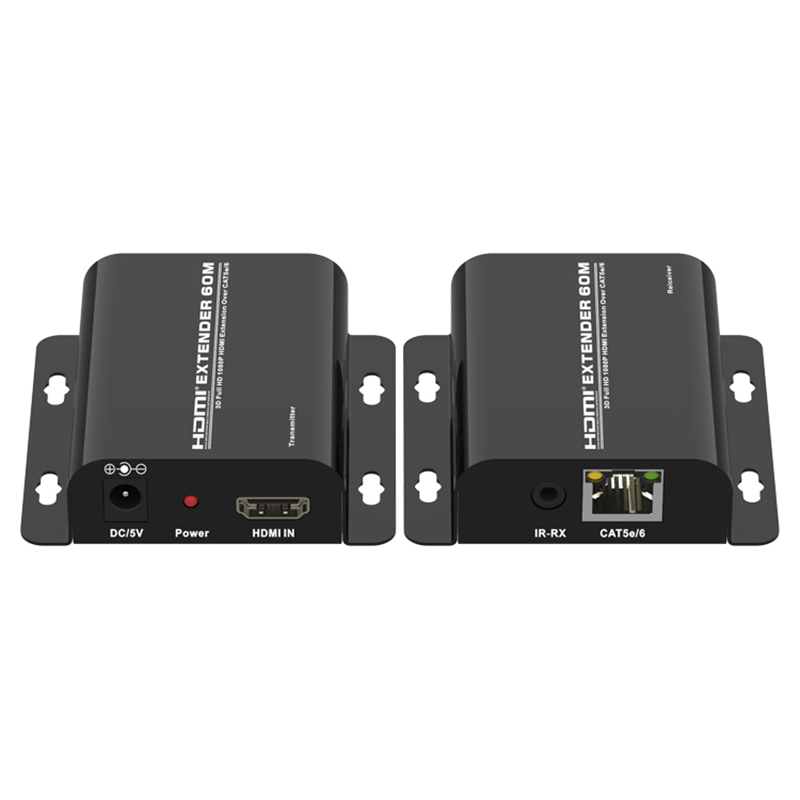

HDMI Extender 60M Over Cat5e/6 with IR (3D Full HD 1080P)


The HDMI to RJ45 Extender use single cat-5e or cat-6(recommended) cables up to 60 meters instead of HDMI cable to transmit high definition signal, for cutting down cost. Long distance transmission of high definition is very difficult because HDMI cable is very expensive and infrequent. The Extender is designed to supply for long distance transmission of high definition signal.

1.0 PACKAGING ACCESSORIES:

(1)HDMI Transmitter—————–1 PCS

(2)HDMI Receiver——————–1 PCS

(3)IR Transmitter———————-1 PCS

(4)IR Receiver————————-1 PCS

(5)Power supply———————–2 PCS

(6)User manual————————1 PCS

2.0 FEATURES

1) HDCP 1.2 protocol compliant;

2) Signal transmission :cat5e or cat-6(recommended) cables up to 60 meters instead of HDMI cables are connected between TX and RX Extender;

3) Support the one-way IR to control signal source at the display terminal;

4) Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i;

5) Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i;

6) Support CEC;

7) Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;

8) No loss of quality;

9) installs in minutes;

10) Need DC5V/1A power supply.
