Description

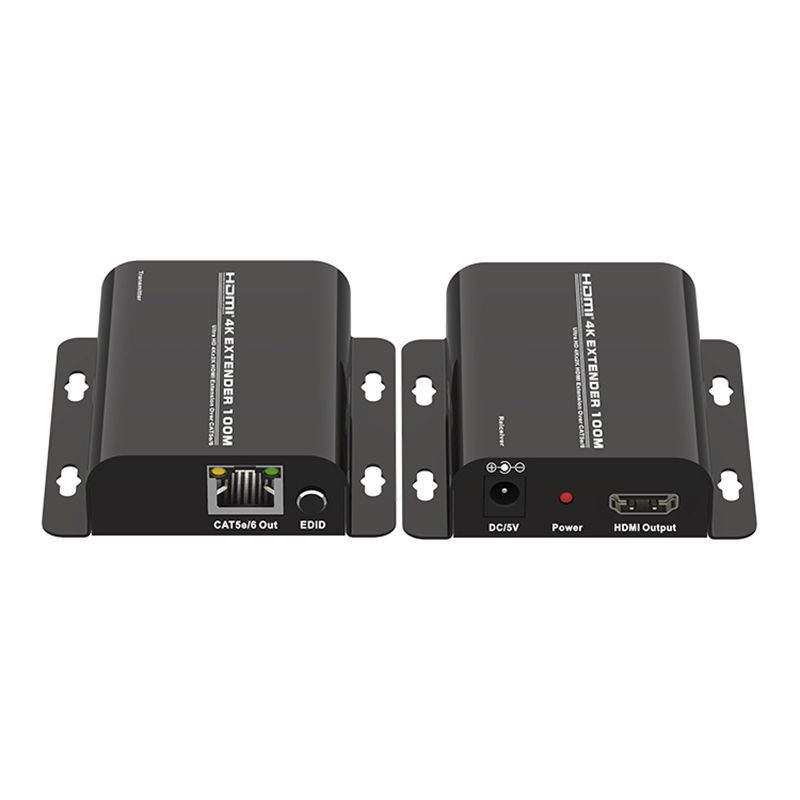

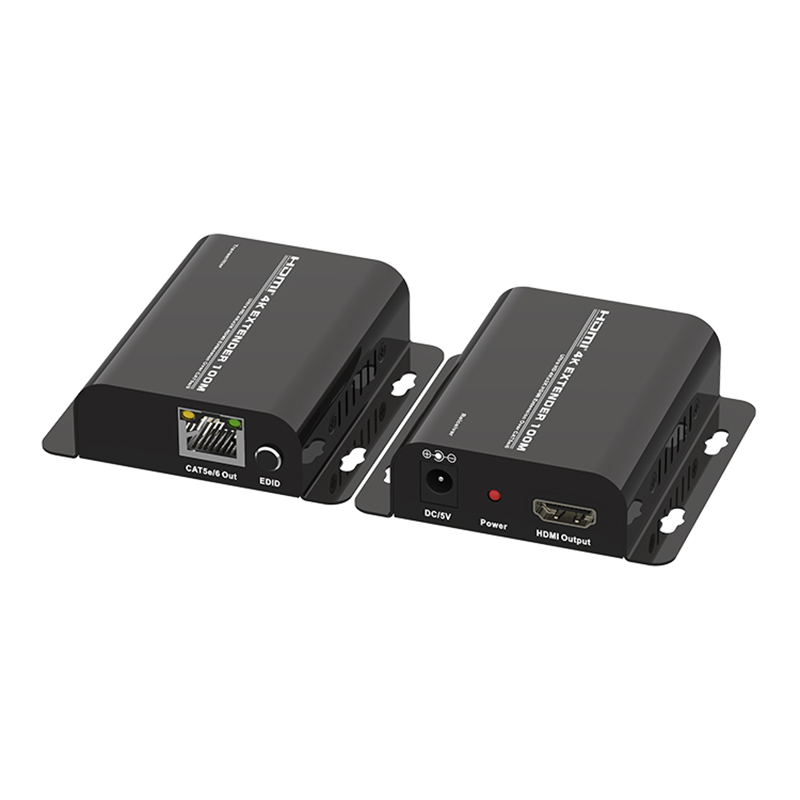

Model No.: HM-EK100
HDMI 100M Extender Over Cat5e/6 (3D Ultra HD 4Kx2K HD)
The 4K 100M HDMI extender uses one single Cat5e/6(recommended)cable instead of HDMI cable,
you can extend the 4K signal to 100 Meters.
The purpose of the extender is to achieve long-distance signal transmission with low- cost wires.
Features
1) Support HDMI1.4v;
2) Signal transmission :CAT5e or CAT6(recommended) cables up to 100 meters instead of HDMI cables are connected between TX and RX Extender;
3) Support input/Output Resolution :
4Kx2K@30Hz/1080p/1080i/720p/576p/576i/480p/480i;
4) Support CEC;
5) Audio format support :
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;
6) No loss of quality;
7) Installs in minutes;
8) Need DC5V/1A power supply.
Packaging Accessories
When first unpacking your extender please check to see if the following items are included:
1.HDMI Transmitter ——————-1PCS
2.HDMI Receiver ———————-1PCS
3.Power supply————————-2PCS
4.User manual————————–1PCS
