HM-EK60S

Model No.: HM-EK60S

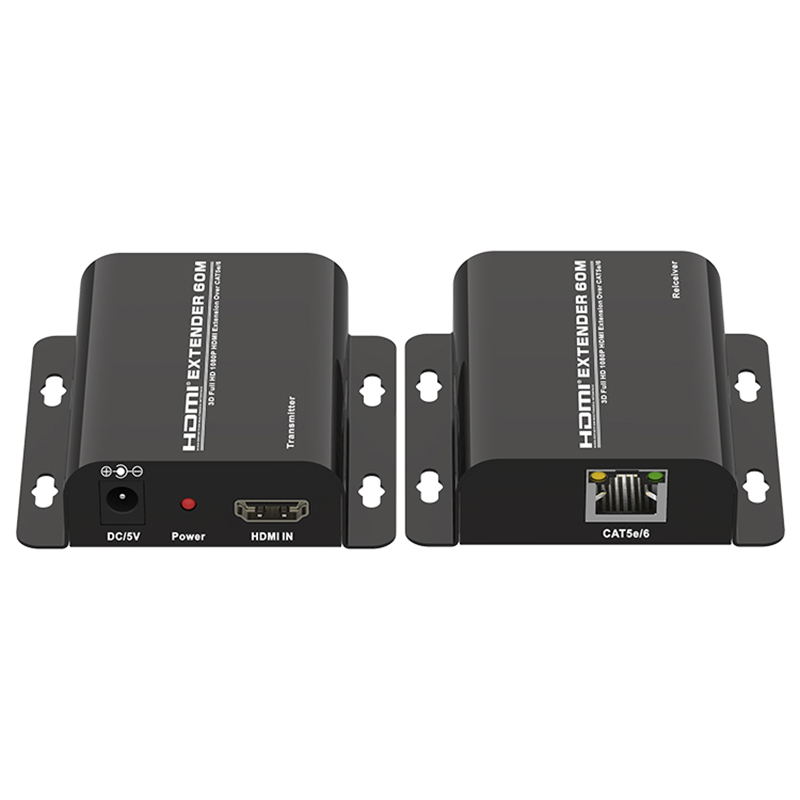

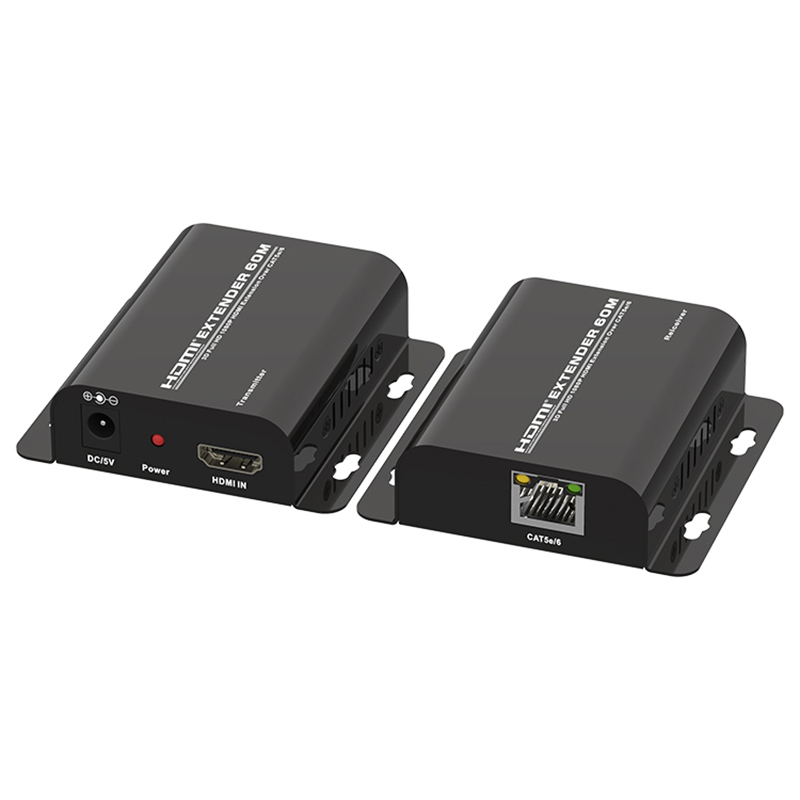

HDMI Extender 60M Over Cat5e/6 (3D Full HD 1080P)


The HDMI to RJ45 Extender use single cat-5e or cat-6(recommended) cables up to 60 meters instead of HDMI cable
to transmit high definition signal, for cutting down cost. Long distance transmission of high definition is very difficult
because HDMI cable is very expensive and infrequent.
The Extender is designed to supply for long distance transmission of high definition signal.
1) HDCP 1.2 protocol compliant;
2) Signal transmission :cat5e or cat-6(recommended) cables up to 60 meters instead of HDMI cables are connected between TX and RX Extender;
3) Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i;
4) Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i;
5) Support CEC
6) Audio format support :DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;
7) No loss of quality
8) Installs in minutes
9) Need DC5V/1A power supply

Package:
 1.Power supply———————–2 PCS
2.User manual————————1 PCS
3.HDMI Transmitter——————1 PCS
4.HDMI Receiver———————1 PCS
