Description
Model No.:HM-HP708

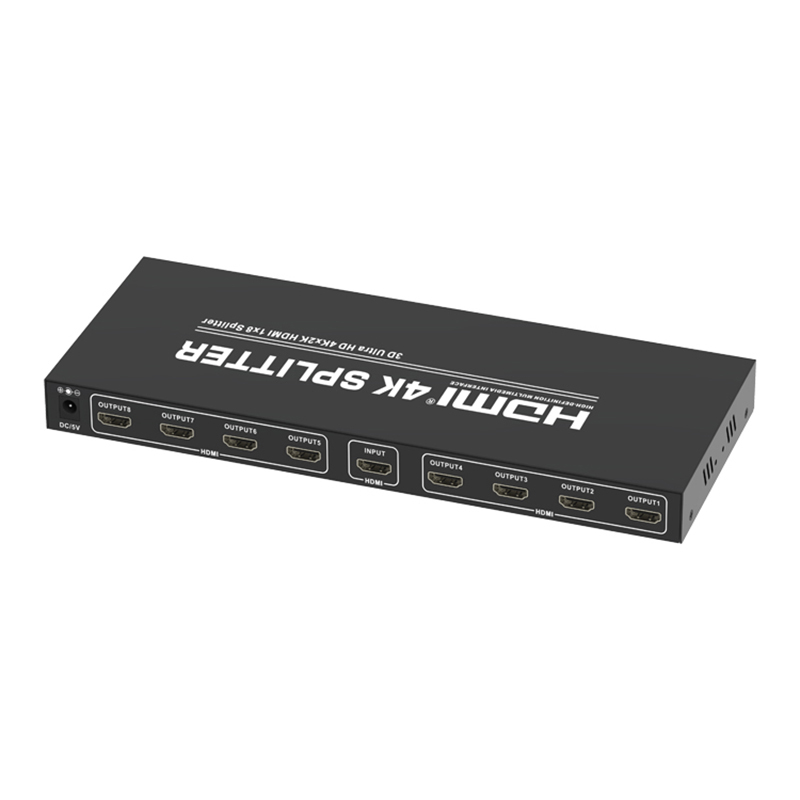

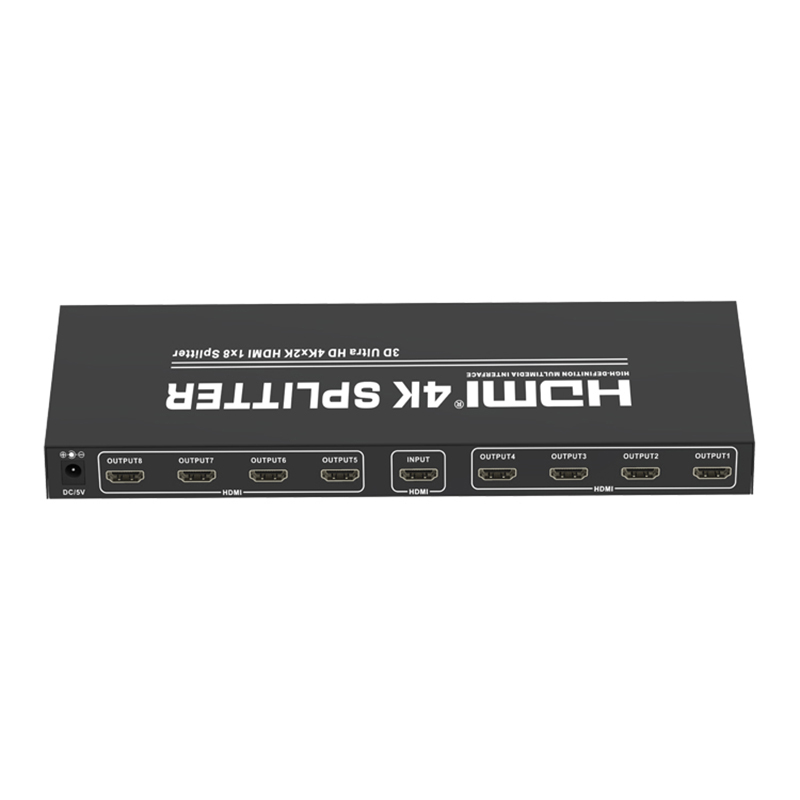

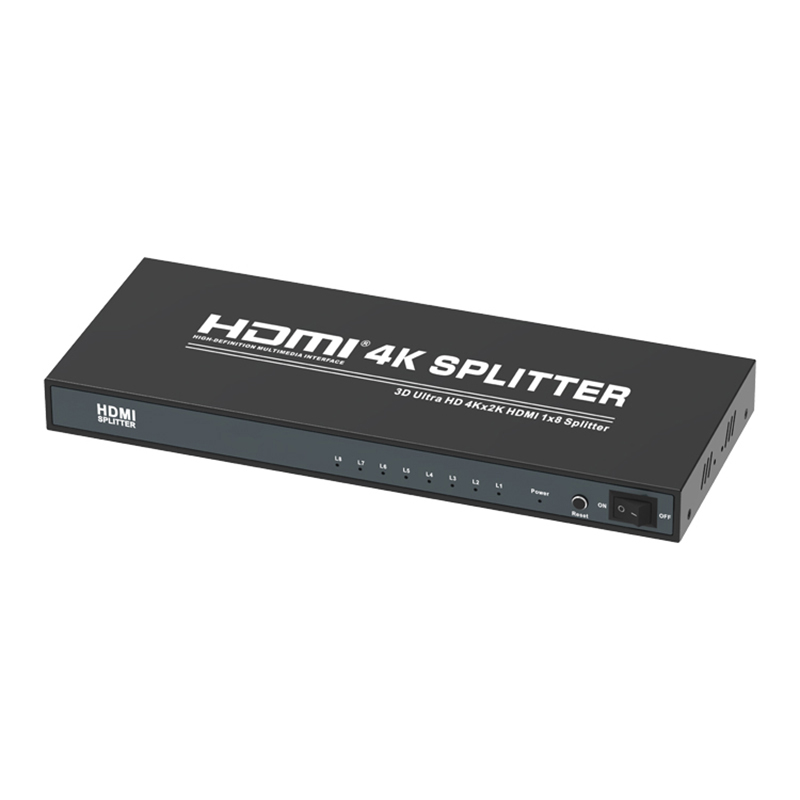

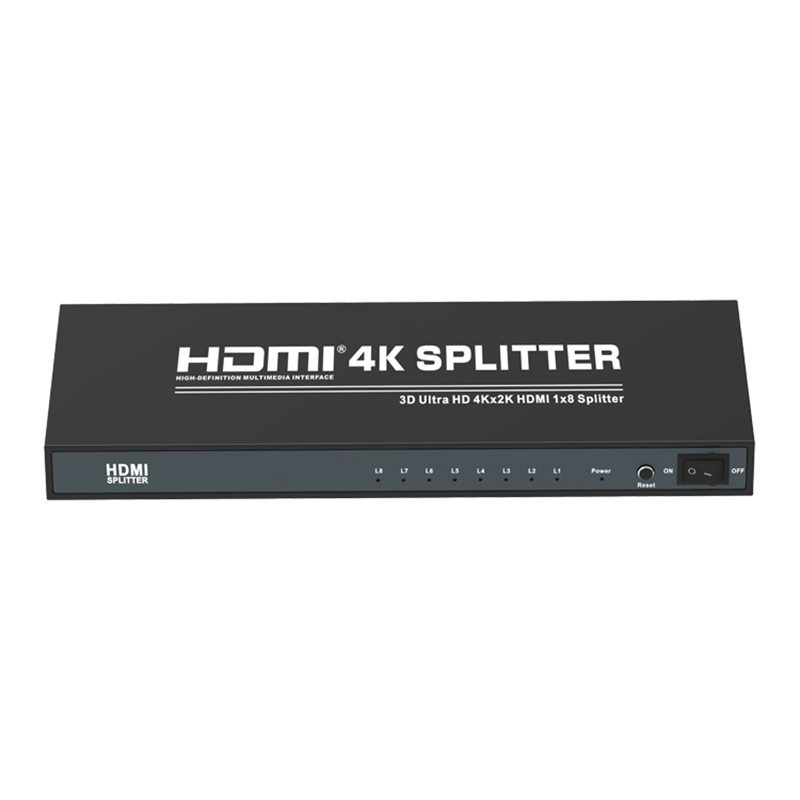

HDMI 1×8 Splitter (3D Ultra HD 4kx2k)
Introduction:
HDMI Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect.
HDMI signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat panel Display.
Features:
1. Fully HDMI 1.4 specification compliant. It is applicable to source device and high definition display device ,such as DVD and HDTV which have HDMI Ports or digital ports and are compliant with HDCP protocol.
2. Support high resolutions up to including 480i/p,576i/p,720i/p,1080i/p and 4Kx2K@25/30Hz
3. Support 30/36 dark, extended color space support, including:SYCC601、Adobe RGB、AdobeYCC601
4. Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC.
5. Audio formats DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 and DSD.
6. Extend the transmission distance and improve transmission signal.
7. Compatible with DVI by using HDMI to DVI adapter.
8. Plug- and -play.
9. Metal casing design and overall shielding without signal interference.
10. Led indicates signal and power mode.
11. Power supply (please refer to technical parameter).
12. Support 3D
Packaging accessories:
1. HDMI 1×8 Splitter————————————————1 Pcs
2. 5V DC Power Adaptor——————————————-1 Pcs
3. User Manual——————————————————-1 Pcs
Technical parameters
HDMI Source Input Port——————————————————————-1
Display Device Output Port—————————————————————8
Source Port Connector—————————————————-19 PIN HDMI
Display Device Port Connector——————————————19 PIN HDMI
HDCP Compliant————————————————————————YES
Single Link Range————————————————————–3840×2160
Input Video Signal——————————————————0.5-1.0 Volts P-P
Input DDC Signal——————————————————–5 Volts P-P(TTL)
Deep Color——————————————————————————48 Bit
HDMI Version———————————————————————–HDMI1.4
Bandwidth———————————————————————Up to 340Mhz
Signal Speed—————————————————————Up to 10.2Gbps
The length of input cable——————————PS4≤15M；BLUE DVD≤15M
The length of output cable————————————————————≤25M
The cable standard——————————————————26AWG HDMI1.4
Vertical Frequency Range————————————————————-60Hz
Power Consumption(max.)——————————————————–6.5Watts
Operation Temperature————————————————————-0℃-70℃
Working Voltage————————————————————————-DC 5V
Power Adaptor—————————————————————————5V 2A
Net Weight——————————————————————————-1.03kg
Dimension: L*W*H(mm)——————————————————-276x156x25
